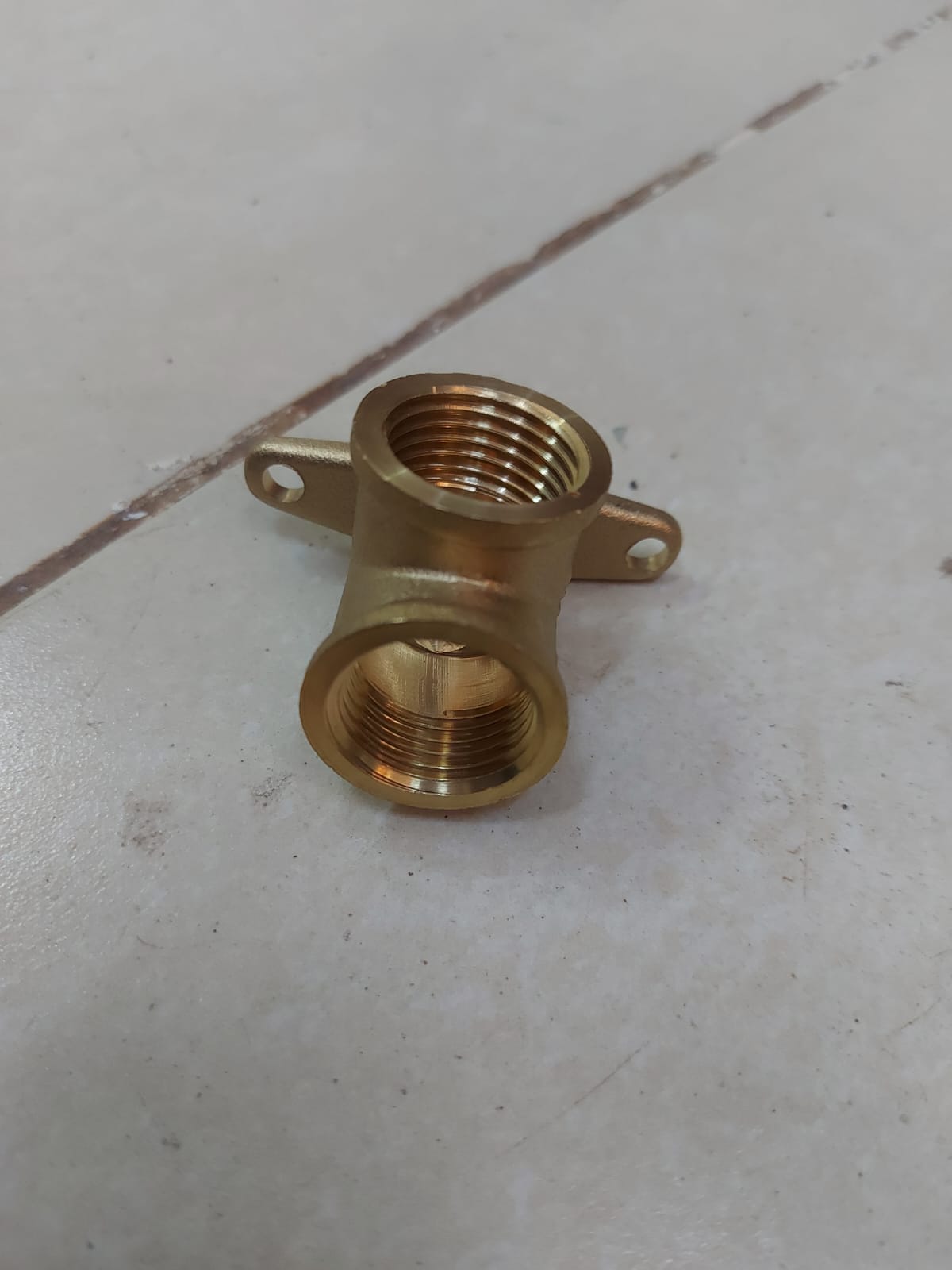

The seated elbow 3/4 inch turns a 3/4 inch line and gives a seated joint that can be opened. It suits branch process lines, steam and condensate lines and equipment connections.
Its seat seals against a mating part, like a union. Confirm the seat and thread type with us before ordering.
What is a seated elbow 3/4 inch?
A seated elbow is a 90 degree fitting with a machined seat on one end. The seat seals against a mating part, in the same way as a union.
Because the seated joint can be opened, it suits connections to equipment that needs removal. Patterns vary, so match the seat type to the mating part.
Further reading
- Carbon steel explained (Wikipedia)
- Nominal pipe size and schedules (Wikipedia)
- Types of piping and plumbing fittings (Wikipedia)
Key terms explained
- Nominal pipe size (NPS)
- The trade size of a pipe, such as 1 inch. Each NPS has a fixed outside diameter.
- Schedule
- A number that sets wall thickness for a pipe size. Schedule 40 is the common standard wall.
- Carbon steel
- Steel whose main alloying element is carbon. It is strong and weldable but needs protection from rust.
- Butt weld
- A weld that joins two pipe or fitting ends edge to edge.
Features and benefits
- Machined sealing seat.
- Joint that opens for service.
- Compact 90 degree turn.
- Threaded connection.
Technical specifications
| Product | Seated Elbow 3/4 Inch |
|---|---|
| Nominal size | 3/4" |
| Material | Metal, confirm with quote |
| Angle | 90 degree |
| Joint | Seated end plus thread, confirm with quote |
| Supplier | Sparks Plumbing Experts Ltd, Nairobi |
Material grade, pressure class and end type depend on stock. Tell us the size, end type and service, and we will confirm.
Applications of a seated elbow 3/4 inch
- Steam lines. Joins steam mains and branches.
- Boiler rooms. Connects feed, blowdown and header pipework.
- Oil and fuel lines. Joins diesel and fuel oil lines.
- Compressed air mains. Builds plant air distribution.
- Fire mains. Joins steel fire water pipework where specified.
- Process plants. Joins process water and utility lines.
- Pump stations. Connects steel pump pipework.
- Cooling water. Joins chilled and cooling water lines.
- Structural frames. Joins pipe in rails and frames.
- Repairs. Replaces worn fittings.
How to choose and install
- Match the seat type and size to the mating part.
- Keep the seat clean and free of sealant.
- Tighten firmly but evenly.
- Replace if the seat is scratched.
Why choose Sparks Plumbing Experts
- Every common pipe materialGI, PPR, PVC, HDPE, brass and stainless fittings are all stocked, so you can match any existing system.
- Common sizes in stockMost fitting types come in several sizes, from small domestic sizes up to larger mains sizes.
- Pipes, fittings and valves togetherPipes, fittings, valves, clamps and jointing products come in one order.
- Help with thread and size standardsWe help you confirm inch and millimetre sizes before you buy, which avoids return trips.
- Visit or collect in NairobiOur store is at KCB Building, Enterprise Road, in the Industrial Area, so you can see parts before you buy or collect your order.
- Quotes your wayAsk for prices by phone, WhatsApp, email or the online quote form, whichever suits you on site.
- Over 1,600 products in one placeOur catalogue covers 55 categories, so one supplier can handle most of your parts list.
- Help choosing the right partSend a nameplate photo, a drawing or the old part, and we help you match size and specification.
- Single items or project quantitiesWe price a single replacement part just as readily as a full site order.
- Supply across East AfricaWe serve customers across Kenya, and we also supply buyers in Uganda and Tanzania.
Related products and accessories
Browse more: Steel & Stainless Steel Pipes & Fittings · Flanges · Valves · Boiler Accessories.
Ordering from Sparks Plumbing Experts
We supply customers across Kenya, and we also serve buyers in Uganda and Tanzania. You can collect from our store at KCB Building, Enterprise Road, Nairobi, or ask us about delivery to your site. Send your quantities and specifications, and we will reply with prices and availability.
Request a Quote WhatsApp 0726 086 895
Frequently asked questions
What does seated mean on a seated elbow 3/4 inch?
One end has a machined seat that seals against a mating part, so the joint can be opened.
What fits a seated elbow 3/4 inch?
A 3/4 inch mating seat or union part. Confirm the pattern with us.
Where is a seated elbow 3/4 inch used?
This size suits branch process lines, steam and condensate lines and equipment connections.
Can I order seated elbow 3/4 inch fittings in bulk?
Yes. Include the quantity in your quote request.
What details do you need to quote seated elbows?
Tell us the size, the material grade, the schedule or pressure class and the quantity. A photo of the old part, a nameplate or a drawing also helps. Then call or WhatsApp 0726 086 895, or use the quote form on this page.
Do you deliver seated elbows outside Nairobi?
Yes. We supply customers across Kenya, and we also serve buyers in Uganda and Tanzania. Delivery or courier arrangements are agreed when you confirm the order.
How much does a seated elbow cost in Kenya?
The price depends on the size, the grade, the schedule and the quantity. Therefore, send your list with a quote request and we will reply with current figures.
Do you supply mill test certificates for seated elbows?
Ask us when you request a quote. We will tell you what documentation is available for the stock you order.
Can seated elbows carry steam?
Steel suits steam when the grade, schedule and rating match the steam pressure and temperature. Confirm your conditions with us.
Does a seated elbow need sealant?
Seal the pipe thread only. The seat seals on its own.
Why does a seated joint leak?
Dirt or scratches on the seat. Clean or replace it.
Can I reuse a seated elbow?
Yes, if the seat is undamaged.
People also search for
union elbow
A union elbow combines a 90 degree turn with a union joint.
seated joint vs threaded joint
A seated joint seals on a machined face. A threaded joint seals on the thread.
Seated elbows price in Kenya
Prices change with size, model and quantity. Request a quote from Sparks Plumbing Experts for current figures.
stainless steel 304 vs 316
316 resists chlorides and chemicals better. 304 suits general water and food use.
schedule 40 vs schedule 80
Schedule 80 has a thicker wall for higher pressure. The outside diameter stays the same.
carbon steel vs stainless steel pipe
Carbon steel is strong and lower in cost but rusts. Stainless resists corrosion and suits hygienic lines.
threaded vs butt weld fittings
Threaded fittings suit small sizes and quick assembly. Butt weld fittings suit high pressure and large sizes.
