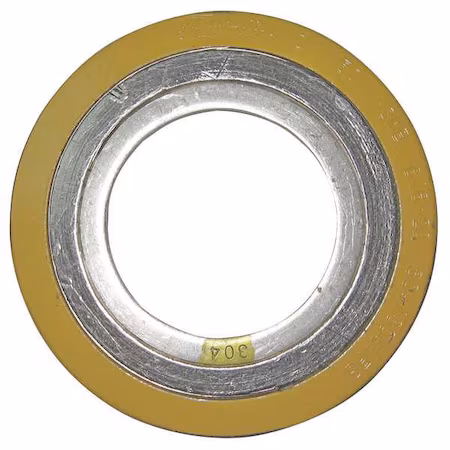

Spiral gasket class 150 3 inch is a spiral wound gasket for ASME Class 150 flanges, sized for 3 inch pipe.
Use it on steam, hot oil and higher pressure flanged joints of the same rating and size. Replace it each time the joint is opened.
What is a spiral gasket class 150 3 inch?
A spiral wound gasket is a metal strip and soft filler wound together into a ring, usually with an outer guide ring that centres it in the bolts. It seals well under high temperature, pressure and thermal cycling, which is why it is the usual choice for steam and hot oil flanges.
Each gasket is made for one flange standard, rating and size. Therefore, a PN16 4 inch gasket goes on a PN16 4 inch flange, and a Class 150 gasket on a Class 150 flange.
Further reading
- Gaskets (Wikipedia)
- Flanges (Wikipedia)
- Mechanical seals (Wikipedia)
Key terms explained
- Winding
- The metal strip wound in the gasket, often stainless steel.
- Filler
- The soft material between windings, such as graphite or PTFE.
- Outer ring
- The guide ring that centres the gasket and limits crushing.
- Inner ring
- An optional ring that protects the bore side.
Features and benefits
- PN16, Class 150 and Class 300 versions.
- 304 and 316 grades listed.
- Sizes 3/4 to 6 inch.
- Good for steam and thermal cycling.
- Size buttons link the matching flange.
Technical specifications
| Product | Spiral wound gasket |
|---|---|
| Nominal size | 3 inch |
| Rating or grade | Class 150 |
| Winding, filler and rings | Confirm with quote |
| Supplier | Sparks Plumbing Experts Ltd, Nairobi |
| Supplier | Sparks Plumbing Experts Ltd, Nairobi |
Sizes, grades and ratings depend on stock and model. Tell us what you need, and we will confirm before you order.
Applications of a spiral gasket class 150 3 inch
- Steam mains. Valve and flange joints.
- Boiler houses. Feed and steam headers.
- Thermal oil lines. Hot oil heaters.
- Heat exchangers. Nozzle flanges.
- Compressed air. High pressure joints.
- Chemical lines. 316 grades where suitable.
- Refineries and depots. Fuel lines.
- Autoclaves. Flanged connections.
- Pump flanges. Hot water pumps.
- Power plant. Steam joints.
How to choose and install
- Match standard, rating and size to the flange.
- Choose filler for the fluid and temperature.
- Tighten bolts evenly in stages.
- Never reuse a compressed spiral gasket.
Why choose Sparks Plumbing Experts
- Valves, flanges and gaskets togetherComplete a pipeline joint with matching valves, flanges, gaskets and bolts.
- Pressure-rated optionsMany items come in PN16, class 150 or class 300 ratings, so you can match the line.
- Stainless and carbon steelChoose stainless for corrosion resistance or carbon steel where it suits the service.
- Plant maintenance sparesKeep critical spares on hand for planned shutdowns and breakdowns.
- Visit or collect in NairobiOur store is at KCB Building, Enterprise Road, in the Industrial Area, so you can see parts before you buy or collect your order.
- Quotes your wayAsk for prices by phone, WhatsApp, email or the online quote form, whichever suits you on site.
- Over 1,600 products in one placeOur catalogue covers 55 categories, so one supplier can handle most of your parts list.
- Help choosing the right partSend a nameplate photo, a drawing or the old part, and we help you match size and specification.
- Single items or project quantitiesWe price a single replacement part just as readily as a full site order.
- Supply across East AfricaWe serve customers across Kenya, and we also supply buyers in Uganda and Tanzania.
Related products and accessories
Browse more: Gaskets · Flanges · Valves · Boiler Accessories.
Ordering from Sparks Plumbing Experts
We supply customers across Kenya, and we also serve buyers in Uganda and Tanzania. You can collect from our store at KCB Building, Enterprise Road, Nairobi, or ask us about delivery to your site. Send your quantities and specifications, and we will reply with prices and availability.
Request a Quote WhatsApp 0726 086 895
Frequently asked questions
Can a 3 inch spiral gasket be reused?
No. Fit a new one each time the joint is opened.
What details do you need to quote spiral gaskets?
Tell us the flange standard or rating, size and quantity. A photo of the old part, a nameplate or a drawing also helps. Then call or WhatsApp 0726 086 895, or use the quote form on this page.
Do you deliver spiral gaskets outside Nairobi?
Yes. We supply customers across Kenya, and we also serve buyers in Uganda and Tanzania. Delivery or courier arrangements are agreed when you confirm the order.
How much does a spiral gasket cost in Kenya?
The price depends on the item, size or model and the quantity. Therefore, send your list with a quote request and we will reply with current figures.
Which spiral gasket fits my flange?
One of the same standard, rating and size.
Can I reuse a spiral gasket?
No. Replace it whenever the joint is opened.
What filler do you supply?
Usually graphite. Confirm with the quote.
Are spiral gaskets good for water?
Yes, but rubber gaskets are often enough for cold water.
What do 304 and 316 mean?
They normally refer to the stainless steel winding grade.
People also search for
spiral wound gasket sizes
3/4 to 6 inch are listed.
graphite vs ptfe filler
Graphite for high heat; PTFE for chemical resistance within its limits.
spiral gasket inner ring
Recommended for some services and higher ratings.
class 150 vs class 300 gasket
They fit different flange ratings and are not interchangeable.
how to install spiral gasket
Centre it, tighten bolts in a cross pattern, in stages.
Spiral gaskets price in Kenya
Prices change with size, model and quantity. Request a quote from Sparks Plumbing Experts for current figures.
