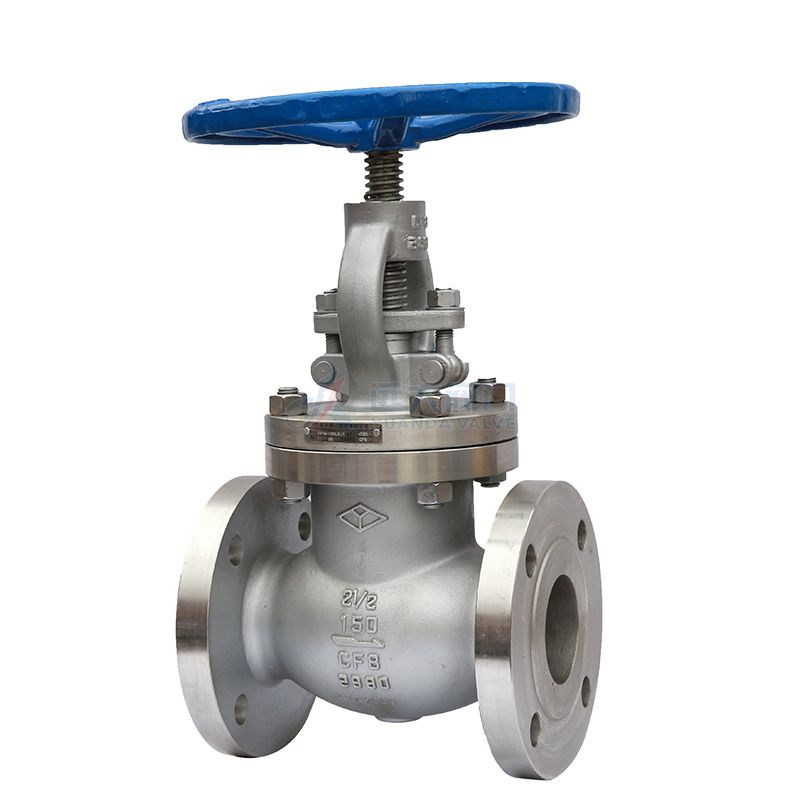

Bellow Seal Valve 2 1/2 Inch in Kenya

The bellow seal valve 2 1/2 inch isolates medium steam mains and process heating lines. A metal bellows seals the stem, so steam or hot oil cannot leak past the gland.

As a result, it saves energy and keeps plant rooms safer than a packed valve. Confirm the body material, pressure class and flange drilling for your line.

What is a bellow seal valve 2 1/2 inch?

A bellow seal valve is a globe valve that uses a welded metal bellows to seal the stem. The bellows is fixed to the stem and the bonnet, so fluid cannot reach the gland.

Ordinary packed valves leak a little steam over time. Therefore, bellow seal valves are used on steam, thermal oil and hazardous lines to stop leaks, save energy and reduce gland maintenance.

Key terms explained

Bellows: A thin, pleated metal tube that flexes as the stem moves while staying sealed.
Gland packing: Soft rings around a valve stem that seal it. They wear and leak over time.
Globe pattern: A body shape where flow passes under a disc, good for regulating flow.
PN rating: Pressure Nominal: the pressure class in bar at reference temperature, such as PN16.
Class 150 and 800: American pressure classes. Class 800 is common for small forged steel valves.
End connection: How the valve joins the pipe: threaded, flanged, wafer, socket weld or clamp.

Features and benefits

Metal bellows seal on the stem.
Backup gland packing.
Globe pattern for regulation and isolation.
Flanged ends.
Suits steam and thermal oil.
Lower energy loss than packed valves.

Technical specifications

Product	Bellow Seal Valve 2 1/2 Inch
Size	2 1/2"
Pattern	Globe
Stem seal	Metal bellows plus backup packing
Body and rating	Cast iron, cast steel or stainless; PN16 to PN40, confirm with quote
Ends	Flanged, confirm drilling with quote
Supplier	Sparks Plumbing Experts Ltd, Nairobi

Body material, pressure class, temperature limit and flange drilling depend on the model. Give us your steam pressure and temperature.

Applications of a bellow seal valve 2 1/2 inch

Boiler outlets. Isolates steam at the boiler.
Steam mains. Isolates sections of steam distribution.
Heat exchangers. Isolates steam to calorifiers and plate exchangers.
Thermal oil systems. Isolates hot oil lines without leaks.
Steam trap sets. Isolates traps for service.
Dairy and food plants. Controls process steam.
Laundries. Isolates steam to ironers and dryers.
Hospitals. Isolates sterilizer steam supplies.
Textile mills. Controls steam to dyeing machines.
Breweries. Controls steam to coppers and tanks.
Chemical plants. Isolates hazardous fluids without stem leaks.
Tea and coffee factories. Controls drying and process steam.

How to choose and install

Match size, pressure class and flange drilling.
Choose body material for the steam pressure and temperature.
Install with flow in the arrow direction.
Support heavy valves so pipework is not strained.
Open slowly to avoid water hammer.

Why choose Sparks Plumbing Experts

Valves, flanges and gaskets togetherComplete a pipeline joint with matching valves, flanges, gaskets and bolts.
Pressure-rated optionsMany items come in PN16, class 150 or class 300 ratings, so you can match the line.
Stainless and carbon steelChoose stainless for corrosion resistance or carbon steel where it suits the service.
Plant maintenance sparesKeep critical spares on hand for planned shutdowns and breakdowns.
Visit or collect in NairobiOur store is at KCB Building, Enterprise Road, in the Industrial Area, so you can see parts before you buy or collect your order.
Quotes your wayAsk for prices by phone, WhatsApp, email or the online quote form, whichever suits you on site.
Over 1,600 products in one placeOur catalogue covers 55 categories, so one supplier can handle most of your parts list.
Help choosing the right partSend a nameplate photo, a drawing or the old part, and we help you match size and specification.
Single items or project quantitiesWe price a single replacement part just as readily as a full site order.
Supply across East AfricaWe serve customers across Kenya, and we also supply buyers in Uganda and Tanzania.

Related products and accessories

Browse more: Valves · Boiler Accessories · Flanges · Gaskets.

Ordering from Sparks Plumbing Experts

We supply customers across Kenya, and we also serve buyers in Uganda and Tanzania. You can collect from our store at KCB Building, Enterprise Road, Nairobi, or ask us about delivery to your site. Send your quantities and specifications, and we will reply with prices and availability.

Request a Quote WhatsApp 0726 086 895

Frequently asked questions

Where is a bellow seal valve 2 1/2 inch used?

For medium steam mains and process heating lines.

What flange drilling does the bellow seal valve 2 1/2 inch have?

It depends on the model, often PN16 or PN25. Confirm with us.

Can the bellow seal valve 2 1/2 inch throttle flow?

Yes. Its globe pattern allows regulation as well as isolation.

Can I order bellow seal valve 2 1/2 inch units in bulk?

Yes. Include quantities in your quote request.

What details do you need to quote bellow seal valves?

Tell us the size, end connection, pressure rating, body material and the fluid and temperature. A photo of the old part, a nameplate or a drawing also helps. Then call or WhatsApp 0726 086 895, or use the quote form on this page.

Do you deliver bellow seal valves outside Nairobi?

Yes. We supply customers across Kenya, and we also serve buyers in Uganda and Tanzania. Delivery or courier arrangements are agreed when you confirm the order.

How much does a bellow seal valve cost in Kenya?

The price depends on the type, size, material, pressure rating and quantity. Therefore, send your list with a quote request and we will reply with current figures.

What does PN16 mean on a valve?

It means a nominal pressure rating of 16 bar at reference temperature. At higher temperatures the allowed pressure is lower, so check the rating table.
